Naim NAC 202 Analog Stereo Preamplifier - Open Box - Clearance

Clearance items are sold as is without a warranty guarantee and no returns.

The Naim NAC 202 is a classic analog preamplifier built for listeners who value clarity, rhythmic drive, and a direct connection to the performance. Its carefully controlled circuit layout, star-earthed boards, precision volume components, and vibration-resistant chassis give it the quiet, stable foundation needed to handle delicate source signals without softening their character.

Four DIN inputs and two RCA inputs make the NAC 202 flexible enough for both traditional Naim systems and components from other manufacturers. It also supports a powered Naim phono stage, configurable unity-gain AV integration, remote-control systems, and several external power-supply upgrades, allowing the preamplifier to grow with the rest of the system.

Clear, Controlled Analog Preamplification

The NAC 202 sits between the NAC 152 XS and Naim’s higher-tier preamplifiers, adding star-earthed circuit boards and a lower-resonance internal layout. These measures help control noise and reduce unwanted interaction between sensitive parts of the circuit.

Its presentation is shaped by careful signal handling rather than added processing. Music retains its timing, dynamic contrasts, and tonal structure, whether the source is a digital front end, tuner, tape deck, or external phono stage.

Low-Resonance Construction

Small vibrations can affect sensitive analog electronics, particularly within a preamplifier where signals are handled at relatively low levels. Naim mounts the NAC 202’s circuitry on low-resonance boards and supports the chassis with anti-vibration feet designed to reduce mechanical interference.

The internal component layout is also arranged to keep resonance and electrical noise under control. Together, these choices give the circuit a stable operating environment and help preserve low-level detail, spatial information, and the natural decay of instruments.

Precision Volume and Balance Control

The volume stage uses carefully matched rotary potentiometers with precious-metal wipers, selected for consistent tracking and long-term stability. This helps maintain channel balance and signal integrity throughout the usable volume range.

The motorized balance control combines a high-quality analog potentiometer with circuitry that identifies its center position. Front-panel controls remain straightforward, with volume, balance, source selection, and monitoring functions arranged in Naim’s familiar eight-button layout.

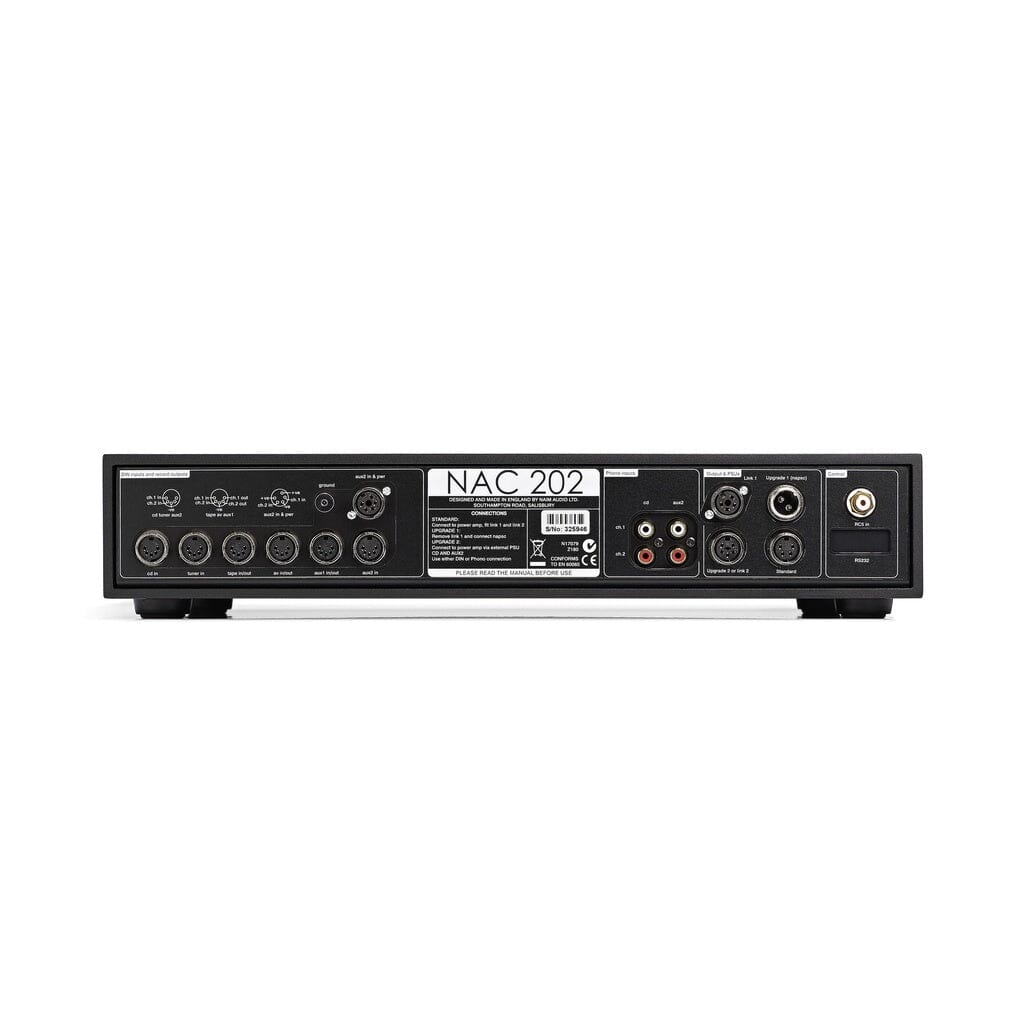

DIN and RCA Source Connections

The NAC 202 includes four DIN inputs and two RCA inputs, allowing it to accommodate a broad range of analog source components. DIN connections provide the preferred interface for a traditional Naim system, while RCA inputs make it easier to integrate third-party DACs, streamers, disc players, and other equipment.

Two variable DIN outputs connect to compatible power amplifiers, while three additional line-level outputs support recording and other fixed-level applications.

Phono Stage and AV Integration

A powered input allows the NAC 202 to supply power directly to a compatible Naim StageLine or Prefix phono stage. This keeps a vinyl source integrated cleanly into the system without requiring a separate power supply for the phono component.

One input can also be configured for unity gain, allowing the NAC 202 to work alongside an AV receiver or surround processor. In this arrangement, the external processor controls the volume of the front channels during home theater use, while the NAC 202 remains the primary preamplifier for two-channel listening.

Flexible Power Supply Options

The NAC 202 does not contain its own conventional internal power supply. It can receive 24V power from the preamplifier connection of a compatible NAP 155 XS or NAP 200 power amplifier, or from an external Naim power supply.

Compatible external supplies include the FlatCap XS, HiCap, and SuperCap. Moving to a dedicated power supply separates the preamplifier from more of the power amplifier’s electrical demands and provides a clear upgrade path for an established Naim system. An optional NAPSC can also be added to power the control circuitry separately.

System Control and Automation

A rear-panel RC5 input and Naim’s Smart IR system support coordinated remote control of compatible Naim components. An optional RS232 connection is available for integration with whole-home control and automation systems.

The internal microprocessor manages switching, remote commands, and protection functions, then enters a sleep state during listening to reduce its influence on the audio circuitry. It also monitors the power supplies and manages safe shutdown behavior during a loss of mains power.

Key Features

• Analog stereo preamplifier with classic Naim circuit design
• Star-earthed circuit boards for improved noise control and transparency
• Low-resonance internal layout
• Anti-vibration, resonance-controlling feet
• Precision rotary potentiometers with precious-metal wipers
• Motorized balance control with center-position indication
• Four DIN analog inputs
• Two RCA analog inputs
• User-configurable unity-gain AV input
• Powered input for a compatible Naim StageLine or Prefix phono stage
• Two variable DIN outputs
• Three fixed line-level outputs
• RC5 input and Smart IR system integration
• Optional RS232 connection for home-automation systems
• Silent microprocessor that sleeps during listening
• Power-supply monitoring and protection circuitry
• Can be powered by a compatible NAP 155 XS or NAP 200 power amplifier
• Compatible with FlatCap XS, HiCap, and SuperCap external power supplies
• Optional NAPSC control-circuit power supply upgrade
• NARCOM-4 remote control included

Technical Specs

What’s in the Box

• Naim NAC 202 preamplifier
• NARCOM-4 remote control
