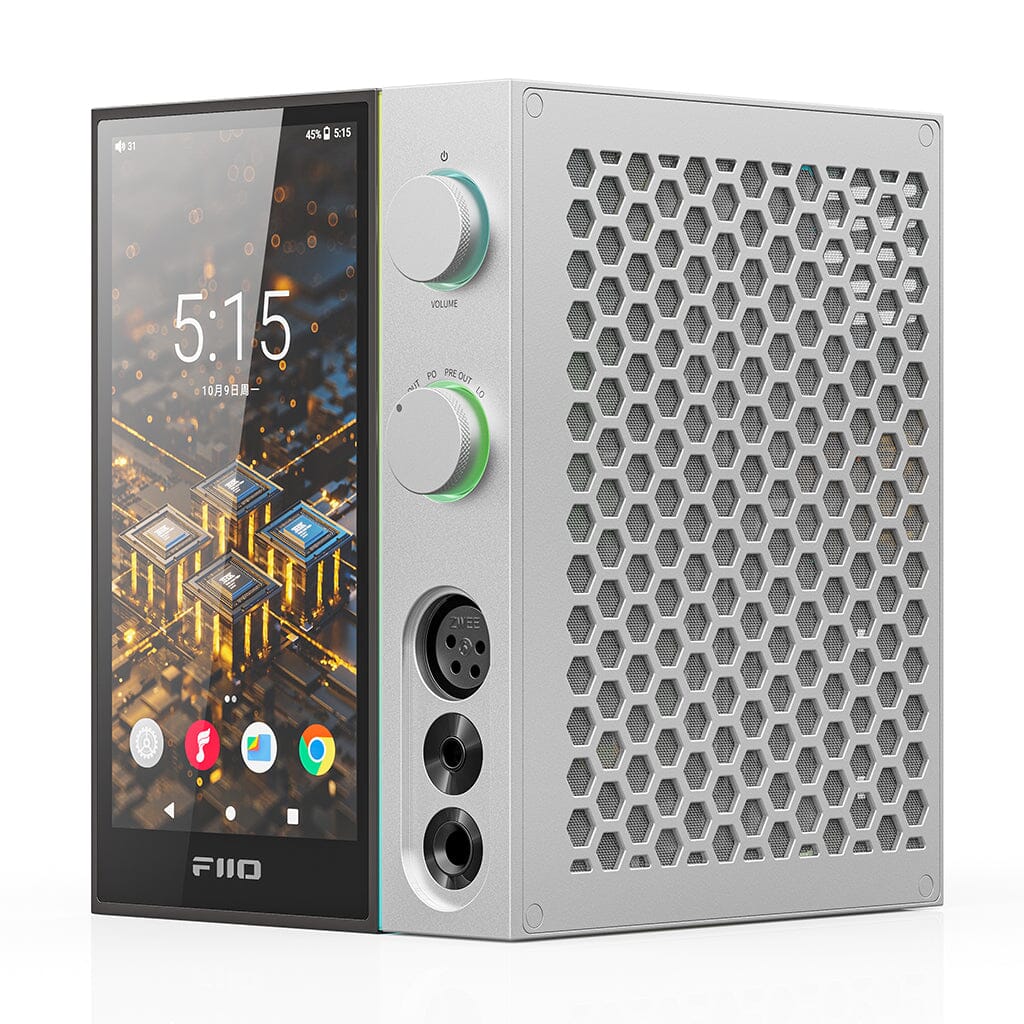

FiiO R9 Desktop DAC and Headphone Amp
FiiO R9 Desktop DAC and Headphone Amp
All-in-One Desktop Hi-Fi Streaming Player & Amplifier
Amplifier type
More information
Translation missing: en.products.product.amplifier_type_info
Solid-state
Connectivity
More information
Connectivity refers to the method in which the headphones connect to the audio source. Headphones can be either wired or wireless.
Wired
Portability
More information
DACs and amplifiers can either be carried around or meant for static desktop use
Not Portable
No Fee 365-Day Returns
Don’t love it to start? Don't worry, you have 365-days to return with no fees.
FiiO
FiiO R9 Desktop DAC and Headphone Amp
The FiiO R9 All-in-One Desktop Hi-Fi Streaming Player & Amplifier is a cutting-edge solution designed to meet the diverse needs of audiophiles and home audio enthusiasts. Combining a powerful streaming platform, headphone amplifier, preamp, and DAC, the R9 delivers exceptional sound quality and unmatched versatility. With a sleek, dual-color metal design, a high-resolution 6" display, and open Android OS, the R9 integrates seamlessly into any modern audio setup. Whether you're streaming, amplifying, or decoding, the R9 sets a new standard in hi-fi audio performance.
A Revolution in Streaming and Amplification
The FiiO R9 isn’t just an amplifier—it’s a complete audio hub. With the ability to play music via NAS, LAN, USB, DLNA, or AirPlay, this device is perfect for music lovers who value versatility. The open Android OS allows users to download third-party apps like Spotify, Tidal, or Qobuz, offering flexibility and convenience. Additionally, its 6" portrait-style display provides an intuitive interface, making it simple to manage settings and switch between audio sources.
Unparalleled Performance with 8-Channel DACs and THX AAA Amplification
At the heart of the R9's exceptional audio performance lies its dual ES9038PRO DACs. Each DAC handles 8 independent D/A converters for fully differential output, achieving incredible -122 dB THD+N and 132 dB DNR. These are paired with an 8-channel THX AAA 788+ amplifier that delivers a stunning 7300 mW of power at 32 ohms, ensuring effortless performance even with demanding headphones. This combination provides unparalleled audio fidelity, with dynamic range and clarity that audiophiles will appreciate.
Hi-Fi 5-Stage Audio Architecture for Precision Sound
The R9 features a sophisticated 5-stage audio architecture—comprising IV, LPF, gain, pre-amplification, and current expansion stages. Each stage is carefully optimized with high-performance SiGe OPA2211 op-amps, ensuring precision and transparency at every volume level. Whether you're using sensitive IEMs or power-hungry over-ear headphones, the R9 guarantees a consistent and immersive listening experience.
Expandable Connectivity and Modular Design

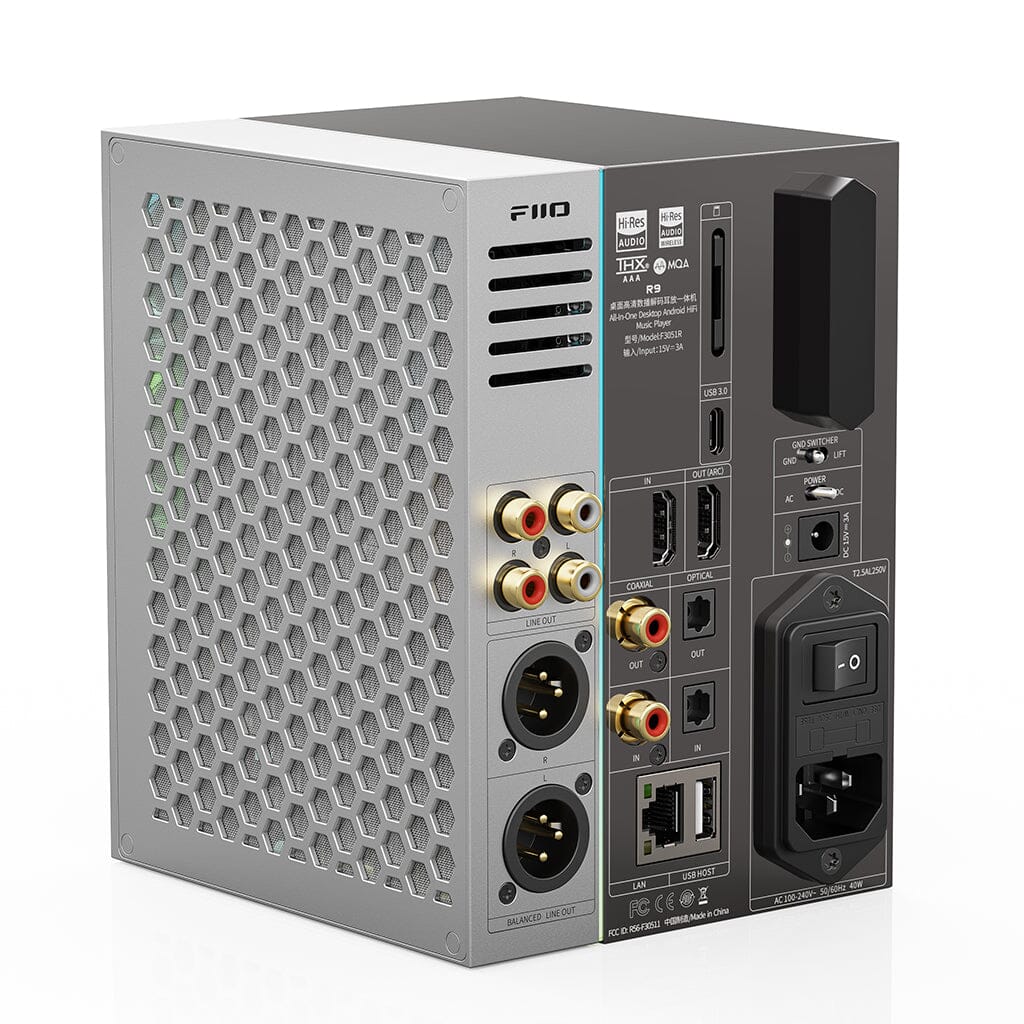

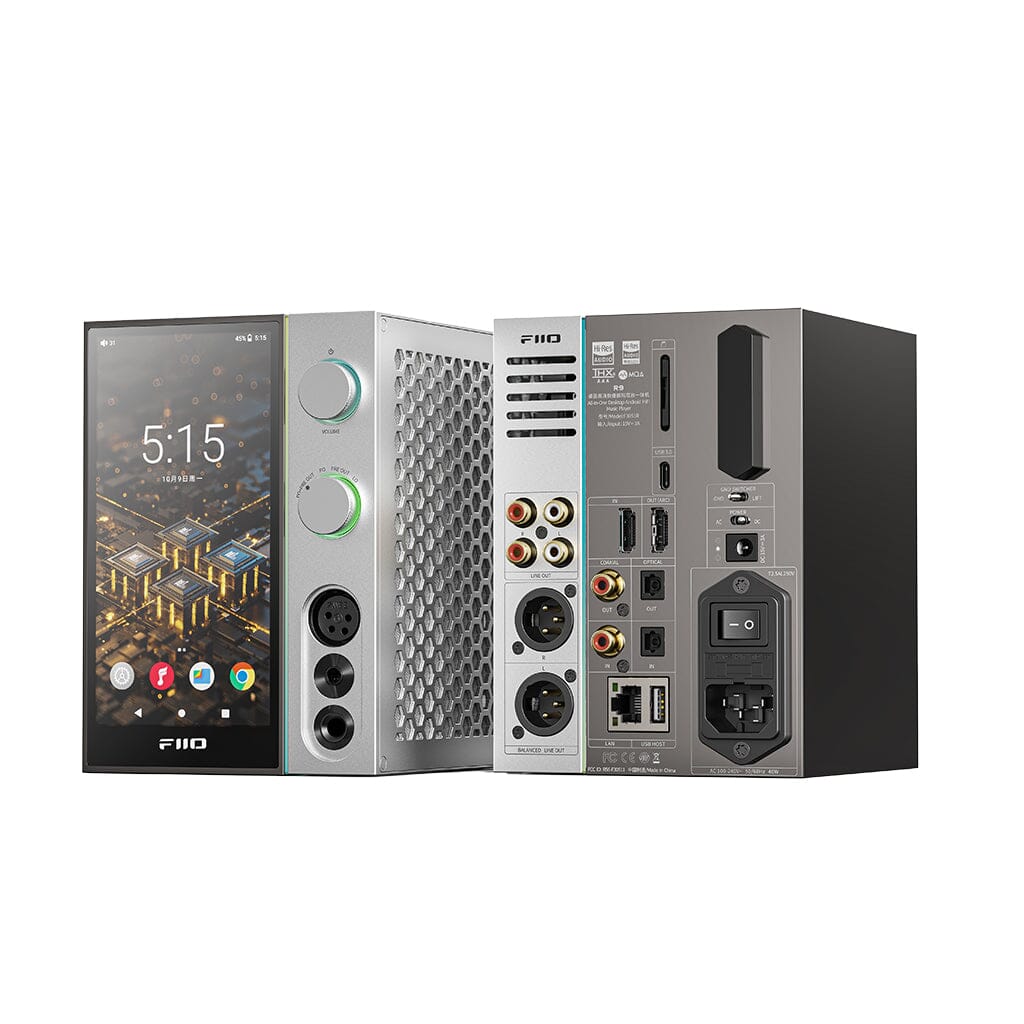

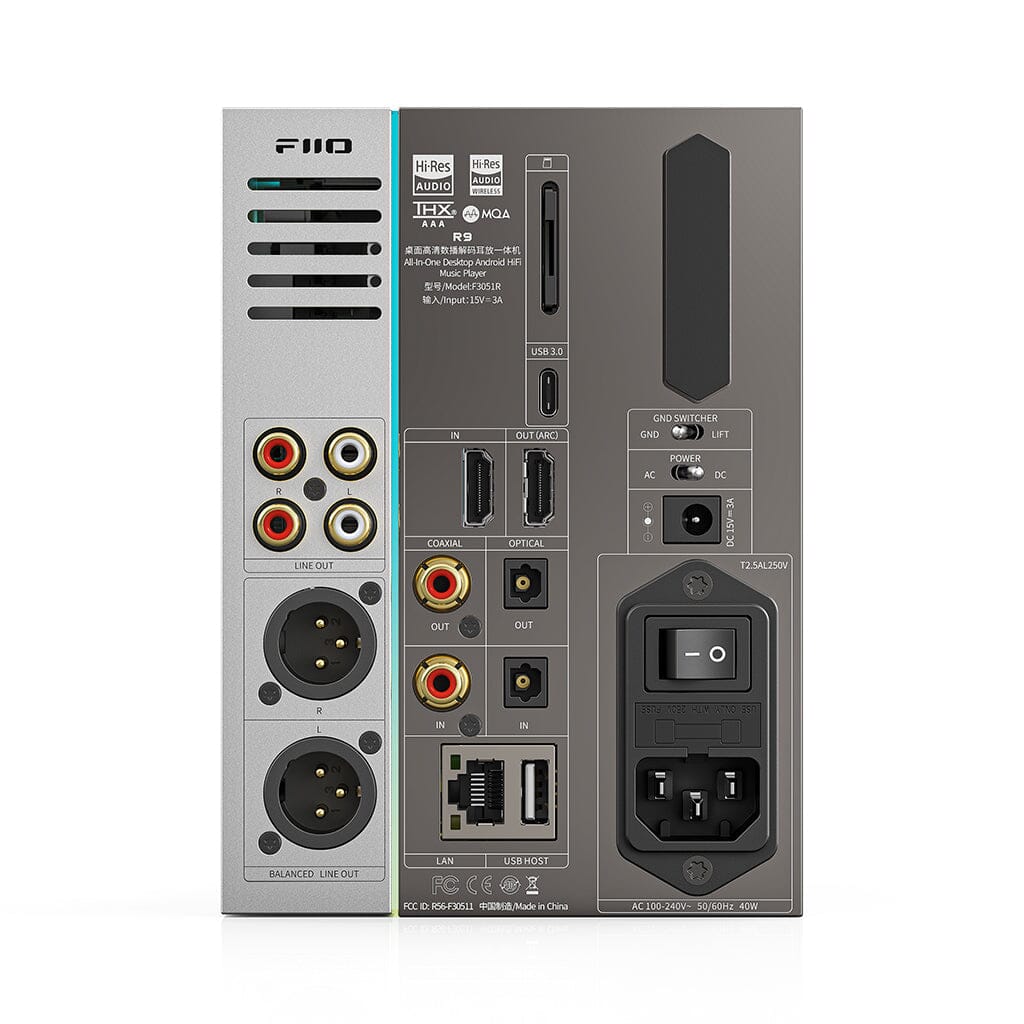

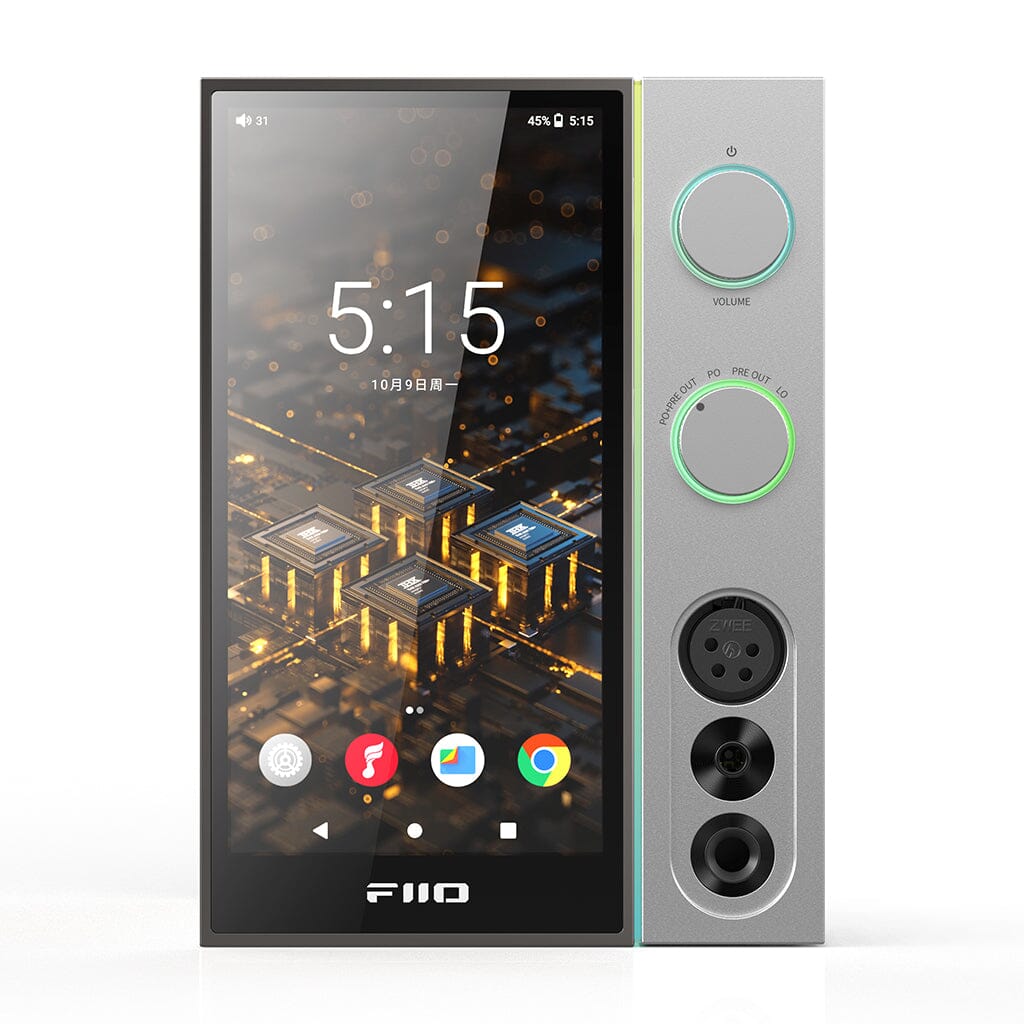

The R9 is designed to be the centerpiece of any hi-fi system, featuring a wide array of input and output options. The rear panel includes HDMI ARC, coaxial, optical, RCA, and XLR outputs, while the front panel offers 6.35mm, 4.4mm, and 4-pin XLR headphone outputs. Additionally, USB-C and USB-A ports allow for external storage or device connectivity, further expanding its capabilities. This flexibility makes the R9 a perfect choice for integrating with other components in a high-end audio setup.
Built for Stability and Long-Lasting Performance
Constructed with precision engineering, the R9 separates its power supply, DAC, amp, and digital components across individual PCBs to reduce crosstalk and interference. Metal shielding between the DAC and THX amp further enhances signal clarity. Its robust build quality, efficient heat dissipation system, and dual power options (AC and DC) ensure stable performance during extended use, making it ideal for professional and home audio environments.
Technical Specifications
Specification | Details |
---|---|
Display | 6" LCD, 1080 x 2160 resolution |
DAC | Dual ES9038PRO 8-channel DACs |
Amplifier | 8-channel THX AAA 788+, 7300 mW at 32 ohms |
Audio Inputs | HDMI (In), Coaxial, Optical, USB-C, USB-A, Ethernet |
Audio Outputs | 6.35mm, 4.4mm balanced, 4-pin XLR (headphone); RCA, XLR (line-out) |
Power Supply | 40W AC Input, 85-305 VAC; 15 VDC external |
Wireless | Dual-Band Wi-Fi, Bluetooth 5.0 |
Streaming Compatibility | DLNA, AirPlay, Roon Ready, Bluetooth (aptX HD, LDAC, AAC) |
Dimensions | 6.3 x 5 x 4.5 inches (160 x 127 x 115 mm) |
Weight | 5 lbs (2271 g) |
Operating Modes | Pure Music, USB DAC, Bluetooth Receiver, AirPlay, Coaxial/Optical |
What's Included
- FiiO R9 Desktop Hi-Fi Streaming Player & Amplifier
- AC Power Cord
- Flat Base & Angled Base
- RM3 Bluetooth Remote
- USB Cable
- Headphone Adapter
- Cleaning Cloth
- Dust Cover Plug
- Fuse
- 4 x Double-Sided Silicone Tape
The FiiO R9 redefines versatility and performance in desktop hi-fi systems. Its innovative design and top-tier components make it the ideal solution for audiophiles and casual listeners alike. Experience the future of hi-fi audio with the FiiO R9, available now at Headphones.com.
