Ferrum Oor Desktop Headphone Amplifier - Open Box
Ferrum Oor Desktop Headphone Amplifier - Open Box
Amplifier type
More information
Translation missing: en.products.product.amplifier_type_info
Solid-state
Connectivity
More information
Connectivity refers to the method in which the headphones connect to the audio source. Headphones can be either wired or wireless.
Wired
Portability
More information
DACs and amplifiers can either be carried around or meant for static desktop use
Not Portable
Ferrum Audio
Ferrum Oor Desktop Headphone Amplifier - Open Box
OOR will redefine the category of headphone amplifiers. OOR will drive any headphones effortlessly to the max of their potential, while preserving the essence of the music it amplifies. Ultra low distortion, zero fatigue, huge dynamics and unrivaled detail result in ultimate enjoyment. OOR actually makes something that is very difficult to accomplish, seem like the most natural thing on earth.
Ferrum Oor Highlights
Truly Balanced
- The signal path stays truly balanced using the XLR inputs and becomes truly balanced using the RCA inputs.
Ferrum Power Link

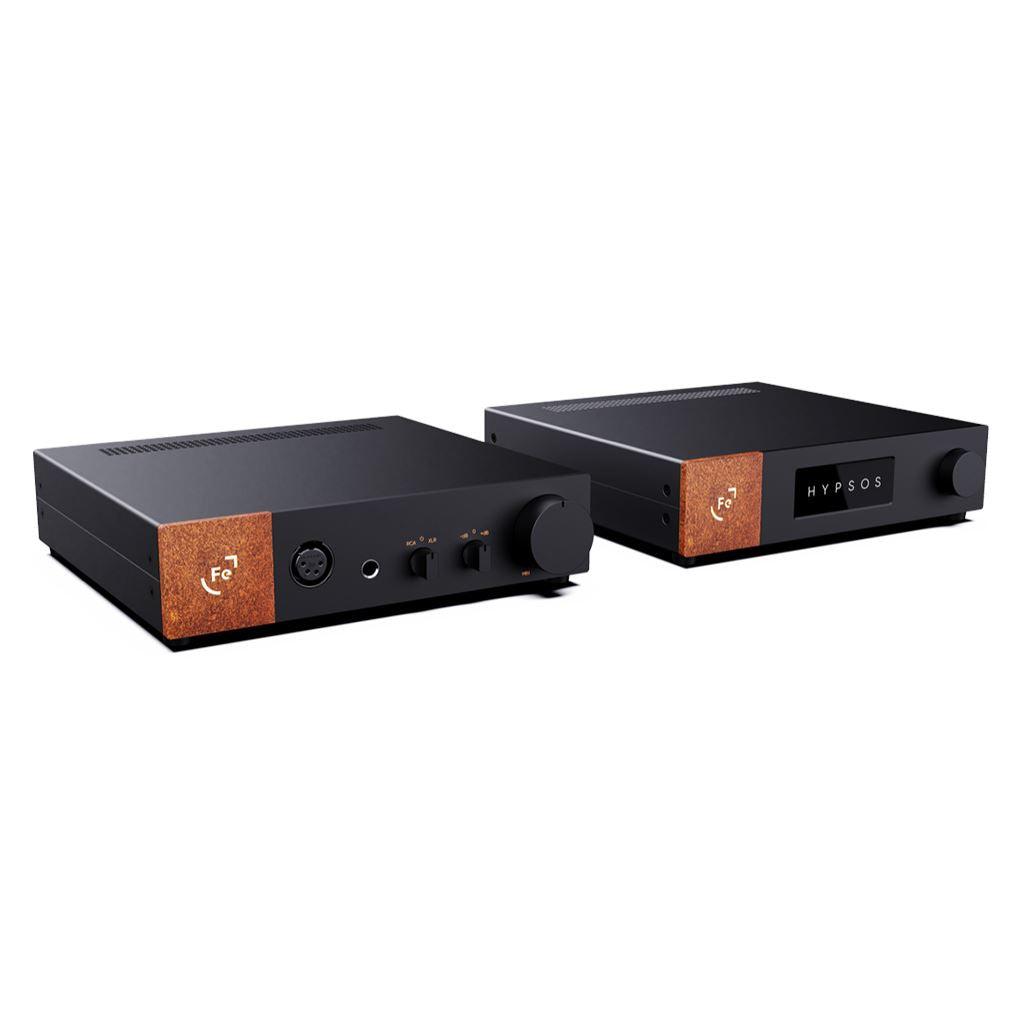

- OOR performs very, very good right out of the box. But OOR is made to excel above and beyond when used together with HYPSOS. We use what we dubbed our Ferrum Power Link (FPL in short) to connect the two. HYPSOS then will perform to its maximum, unleashing unheard musicality from the combination with OOR.
Enhanced transparency
- The whole design is focused on a balanced and very transparent sound signature, making listening fatigue something of the past.
Ease of use
- Only three knobs on the front panel to control the most important settings.
Superior control
- Perfected steering of output transistors protect them and never let them turn off, therefore reducing distortion to inaudible levels and keeping them in a state where they can instantly unleash all their power, crucial for high dynamics, superlative control and authority in sound.
Discrete design
- The discrete power amp technology is developed in-house to achieve the best possible analog quality.
Unique output cable design: two wires delivering the power and two wires providing the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable's resistance effectively improving transient response. The current delivery speed at the powered device's input is significantly improved.

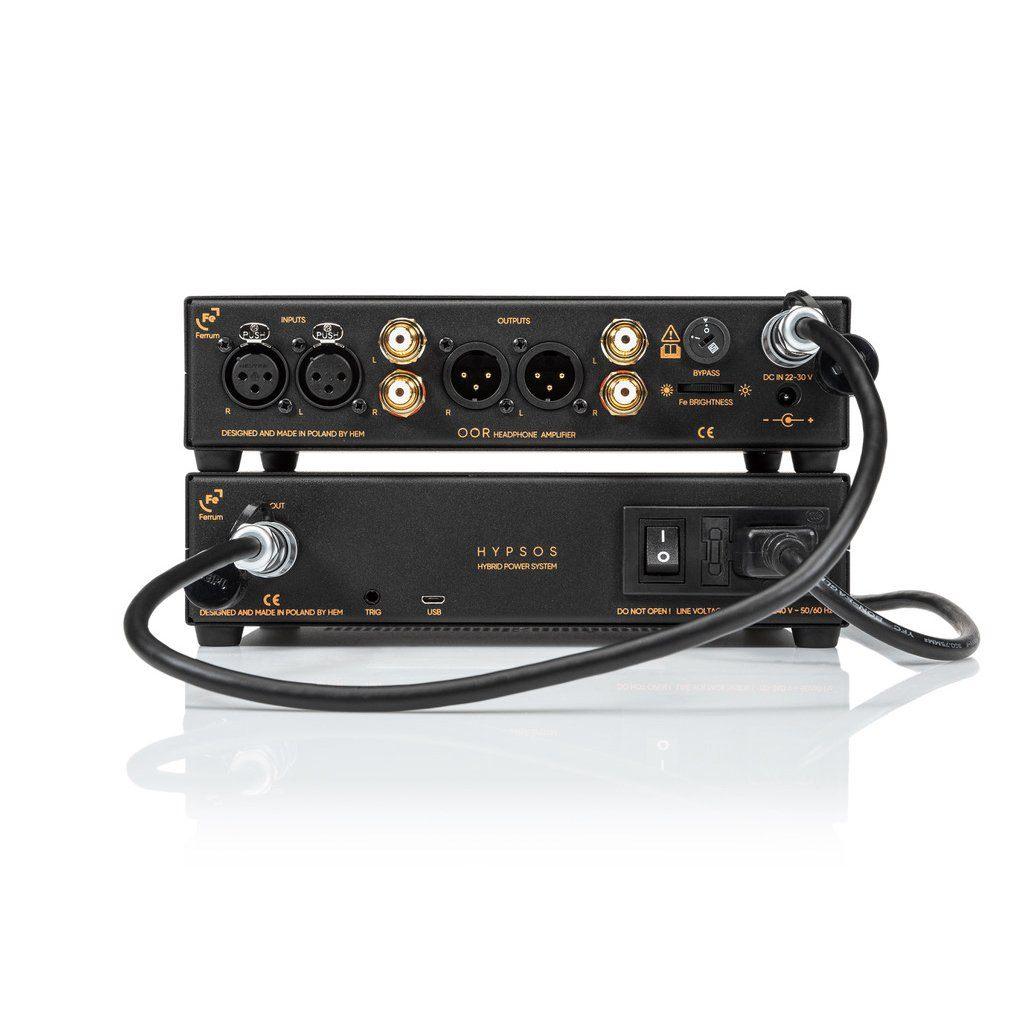

OOR comes with a carefully selected DC power adapter. To get the most out of OOR you can connect it with HYPSOS using our proprietary Ferrum Power Link DC power cable. This FPL cable can be ordered separately.
Ferrum Oor Specifications
- Gain (dB): balanced -4 dB, + 6dB, +16 dB / single ended -10 dB, 0 dB, 10 dB
- Operation: Fully balanced, proprietary discrete power amp technology

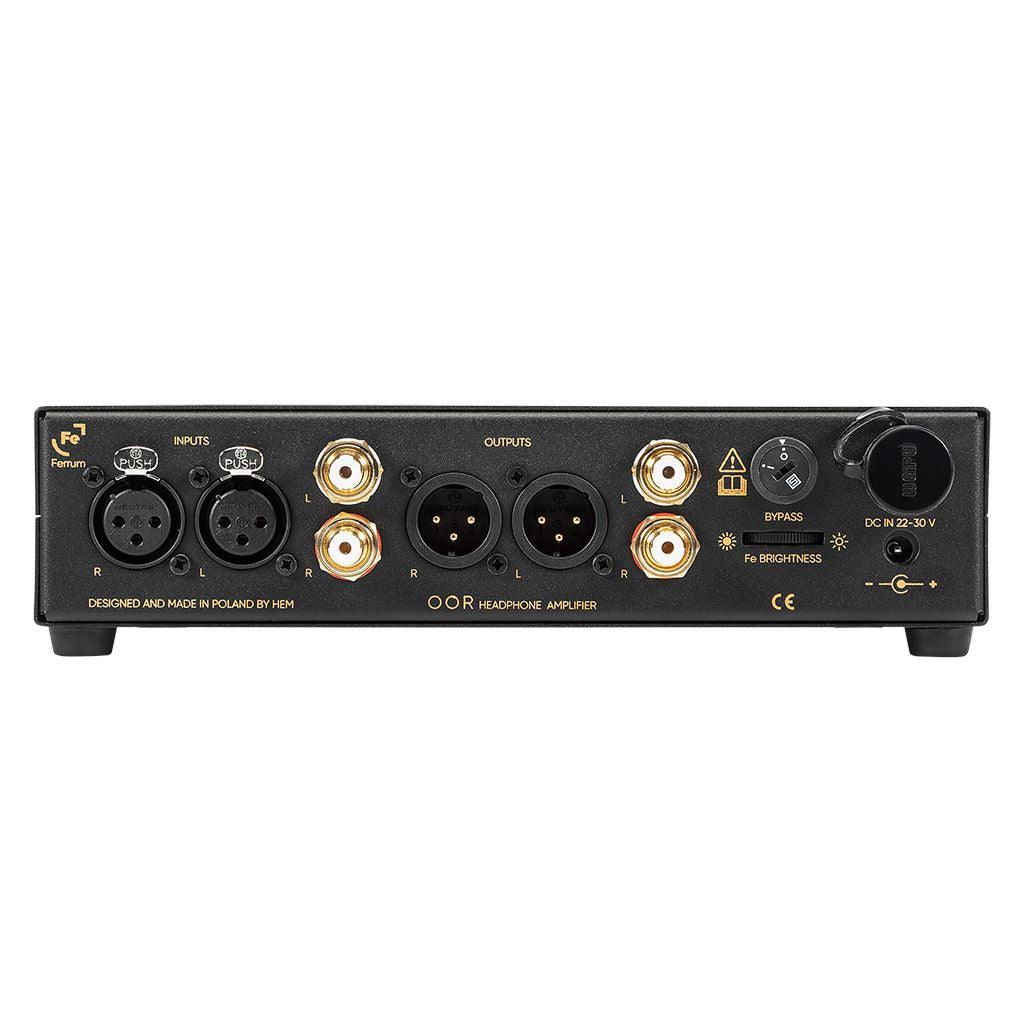

- Inputs: XLR, RCA, 2.5 mm DC connector center positive, proprietary 4-pin DC connector
- Outputs: Balanced 4-pin XLR, 6.35 mm jack
- Frequency Response: 20 Hz – 100 kHz 0.1 dB
- Output Power Single Ended: 400 mW into 300 Ω, 2 W into 60 Ω
- Output Power Balanced: 1.600 mW into 300 Ω, 8 W into 60 Ω
- THD + Noise: TBA
- Input Impedance: 94 kΩ
- Output Impedance Single Ended: 22 Ω on pre-amp
- Output Impedance Balanced: 44 Ω on pre-amp
- Output headphones Impedance: < 0.3 Ω
- Power Consumption: Idle <15 W
- Power Adapter: 100/240 V AC to 22-30 V DC
- Dimension (W x D x H) (In/cm): 8.6 x 8.1 x 2.0 inch / 21.7 x 20.6 x 5 cm
- Weight (kg/lbs): 1.8 kg / 3.97 LBS
