Cambridge Audio

Cambridge Audio DacMagic 100

$149
$149

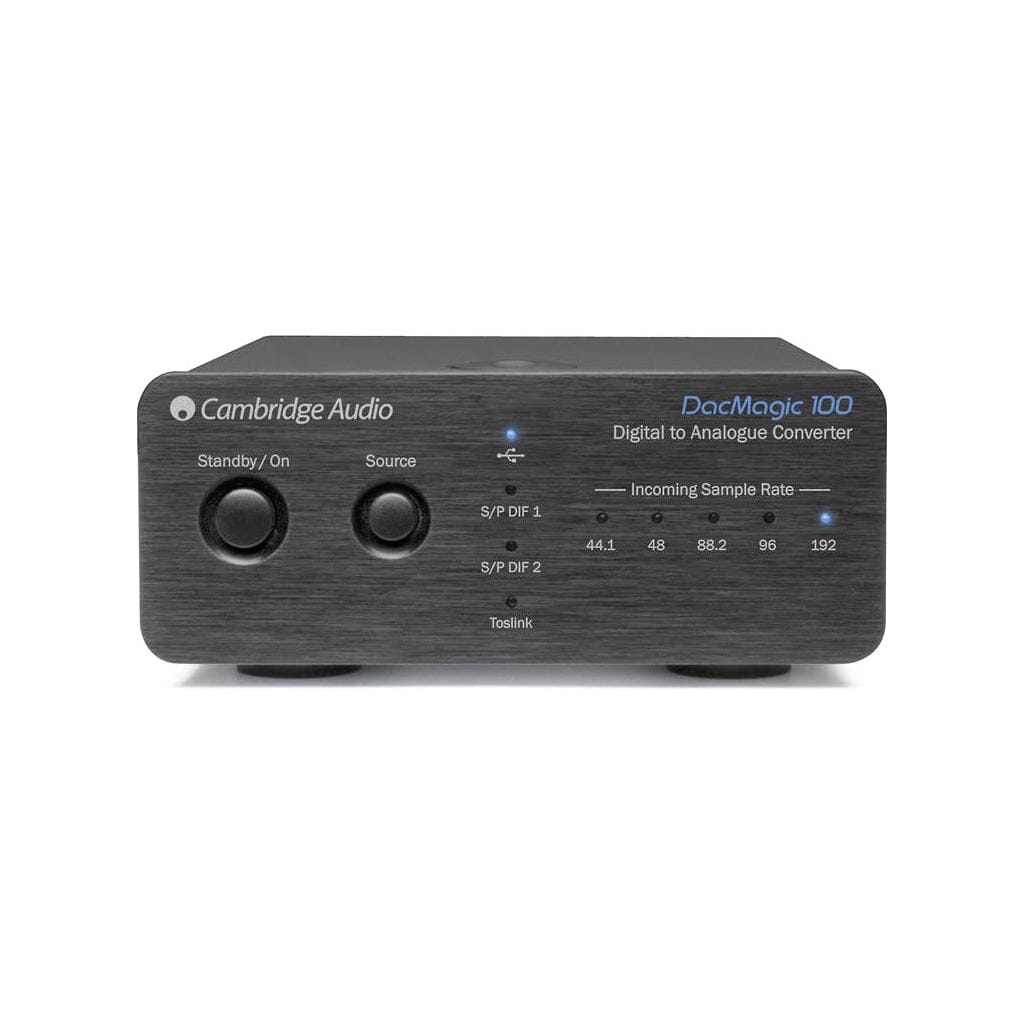

Front view of the Cambridge Audio DacMagic 100 DAC shows standby/on and source buttons, input and 24-bit/192 kHz indicator lights, and Cambridge Audio branding on the top left and right.
  • Front view of the Cambridge Audio DacMagic 100 DAC shows standby/on and source buttons, input and 24-bit/192 kHz indicator lights, and Cambridge Audio branding on the top left and right.

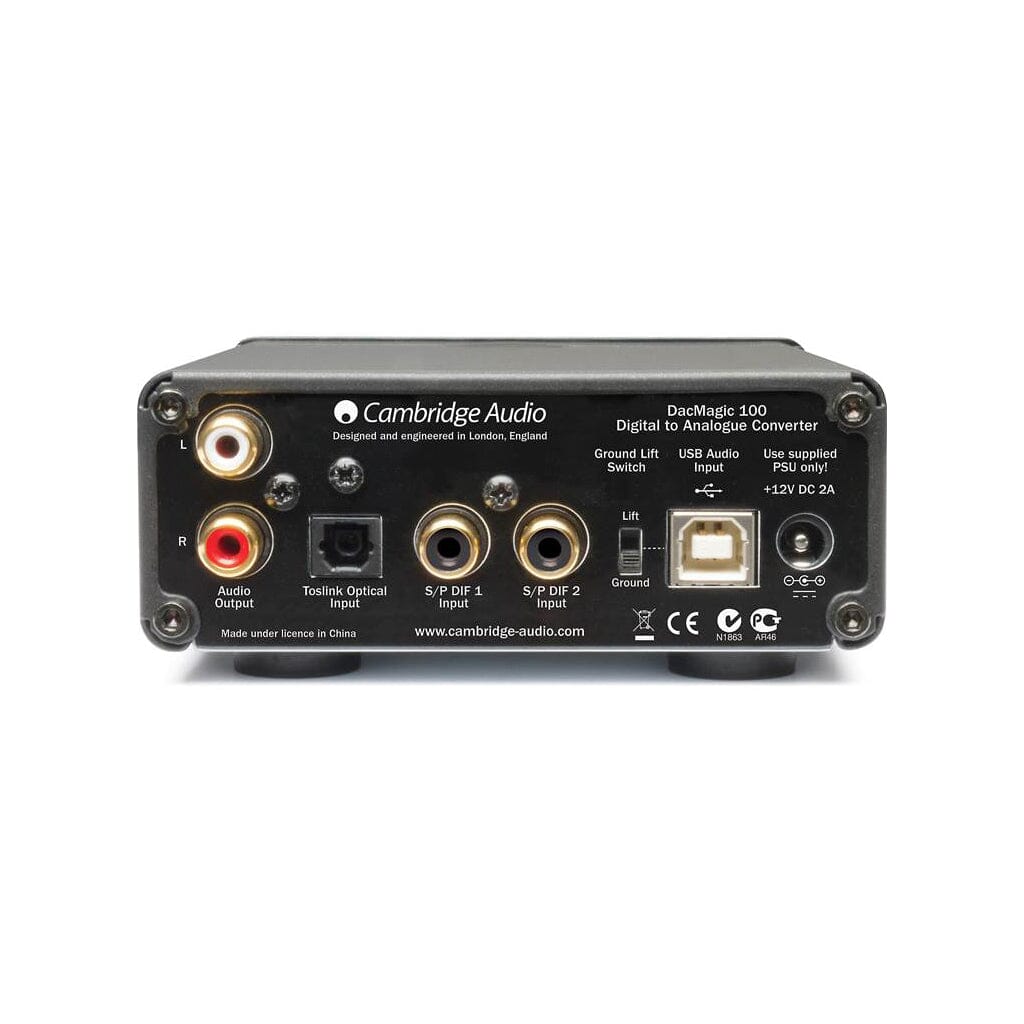

  • Rear view of the Cambridge Audio DacMagic 100 DAC by Cambridge Audio, featuring labeled RCA, coaxial, optical, USB, and power ports. Supports high-quality 24-bit/192 kHz audio.

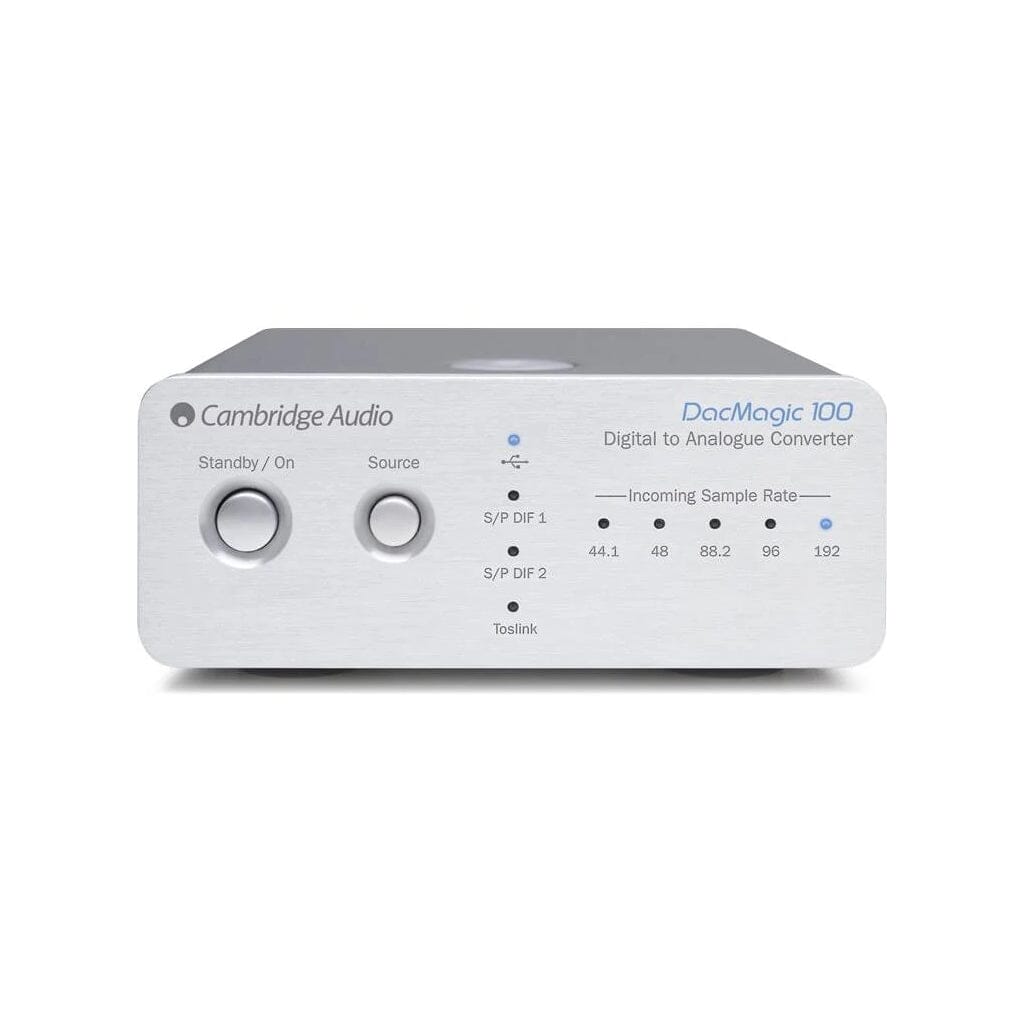

  • Front view of the Cambridge Audio DacMagic 100 by Cambridge Audio, showing control knobs, indicator lights, and labels for standby/on, source selection, and digital audio sample rates up to 24-bit/192 kHz.
  • Front view of the Cambridge Audio DacMagic 100 DAC shows standby/on and source buttons, input and 24-bit/192 kHz indicator lights, and Cambridge Audio branding on the top left and right.
  • Rear view of the Cambridge Audio DacMagic 100 DAC by Cambridge Audio, featuring labeled RCA, coaxial, optical, USB, and power ports. Supports high-quality 24-bit/192 kHz audio.
  • Front view of the Cambridge Audio DacMagic 100 by Cambridge Audio, showing control knobs, indicator lights, and labels for standby/on, source selection, and digital audio sample rates up to 24-bit/192 kHz.
1 2
Cambridge Audio

Cambridge Audio DacMagic 100

Cambridge Audio DacMagic 100

Final Sale
Final sale items are not returnable but they come with a full warranty.
$149
$149

View full details
Need some help? Chat with one of our experts
Found a better price? Learn about our price matching policy

Description

A compact DAC built for pure, reliable digital audio. The DacMagic 100 uses a Wolfson WM8742 24-bit converter and asynchronous USB to deliver low-jitter, high-clarity playback from computers, TVs, game consoles, and digital transports. With support for sample rates up to 24-bit/192 kHz, an incoming sample rate indicator, and a ground lift switch to eliminate hum, it is designed for simple, problem-free integration into any stereo system. The full-metal chassis adds rigidity and durability while three digital inputs and USB Type B support cover most modern sources. If you want a clean upgrade to the sound of your digital devices without adding size or complexity, the DacMagic 100 is an easy fit.

Specifications

Type Desktop external DAC
DAC chipset Wolfson Microelectronics WM8742, 24 bit
Inputs 1 x USB Type B
1 x Optical (Toslink)
2 x Coaxial (RCA S/PDIF)
Outputs 1 x Stereo RCA line out
USB sample rates 44.1 kHz, 48 kHz, 96 kHz
Up to 24 bit / 192 kHz with Cambridge Audio USB 2.0 driver (Windows) or native support on Mac OS X 10.5 or later
Optical sample rates 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Coaxial sample rates 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 192 kHz
Supported formats PCM up to 24 bit / 192 kHz (no DSD, DXD, or MQA)
Frequency response 20 Hz to 20 kHz (±0.1 dB)
THD < 0.0025 %
Signal to noise ratio 113 dB (unbalanced)
Ground lift Rear panel ground / lift switch to help eliminate hum
Chassis Full metal case with thick brushed aluminum front panel
Power supply External AC adapter, 12 V / 2 A (100 to 240 V AC, 50/60 Hz input)
Dimensions (W x H x D) 4 1/4 in x 1 13/16 in x 6 1/16 in
Weight 1.1 lb (without power supply)
TV compatibility note For TV use, set the TV digital audio output to PCM stereo. Not compatible with Dolby Digital or DTS bitstream signals.
Manufacturer part number C10501
Item number 779DAC100B

What is in the box

  • Cambridge Audio DacMagic 100 external digital-to-analog converter
  • Cambridge Audio DacMagic 100 owner's manual
  • AC power adapter with attached 4 ft DC cord
  • 3 AC power plugs (US, EU, UK)
  • 28 in USB Type B to USB Type A cable
  • Cloth pouch
  • Quick start guide
  • Important safety instructions
