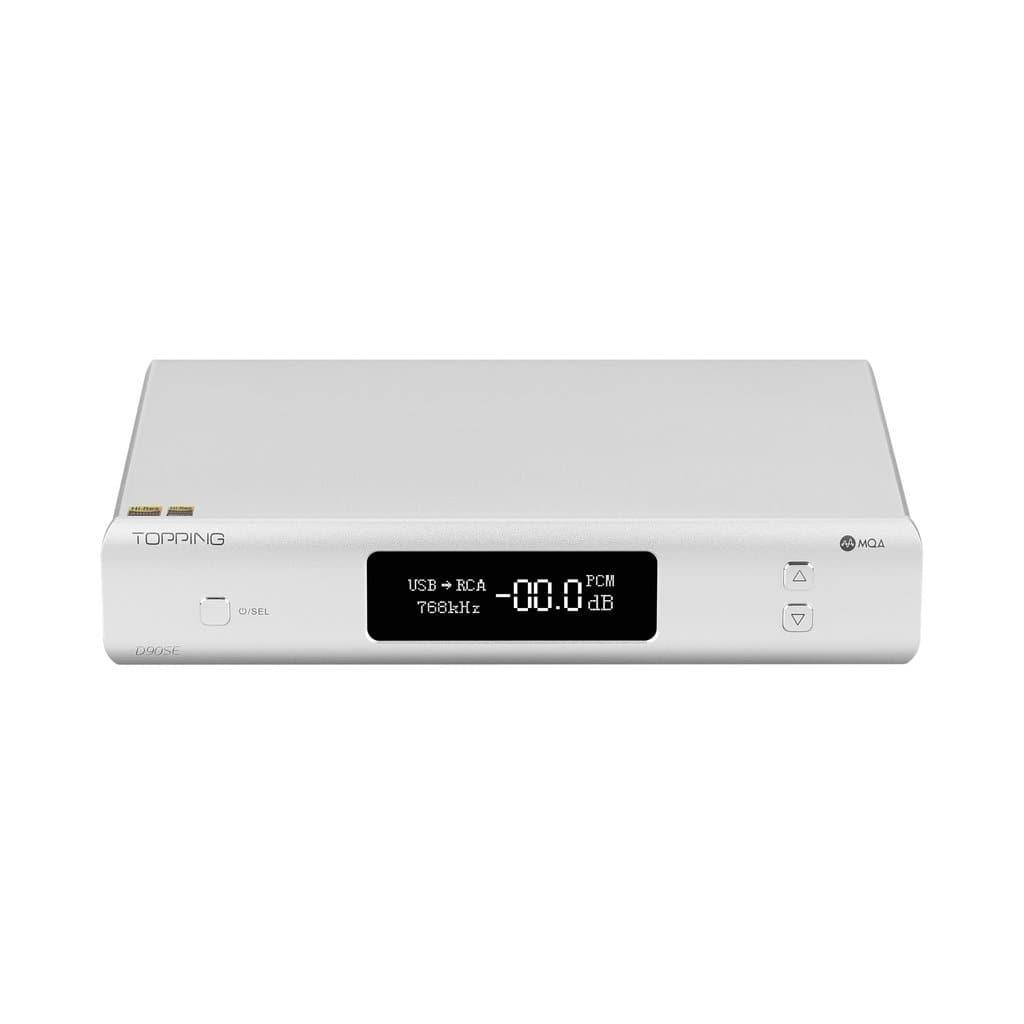

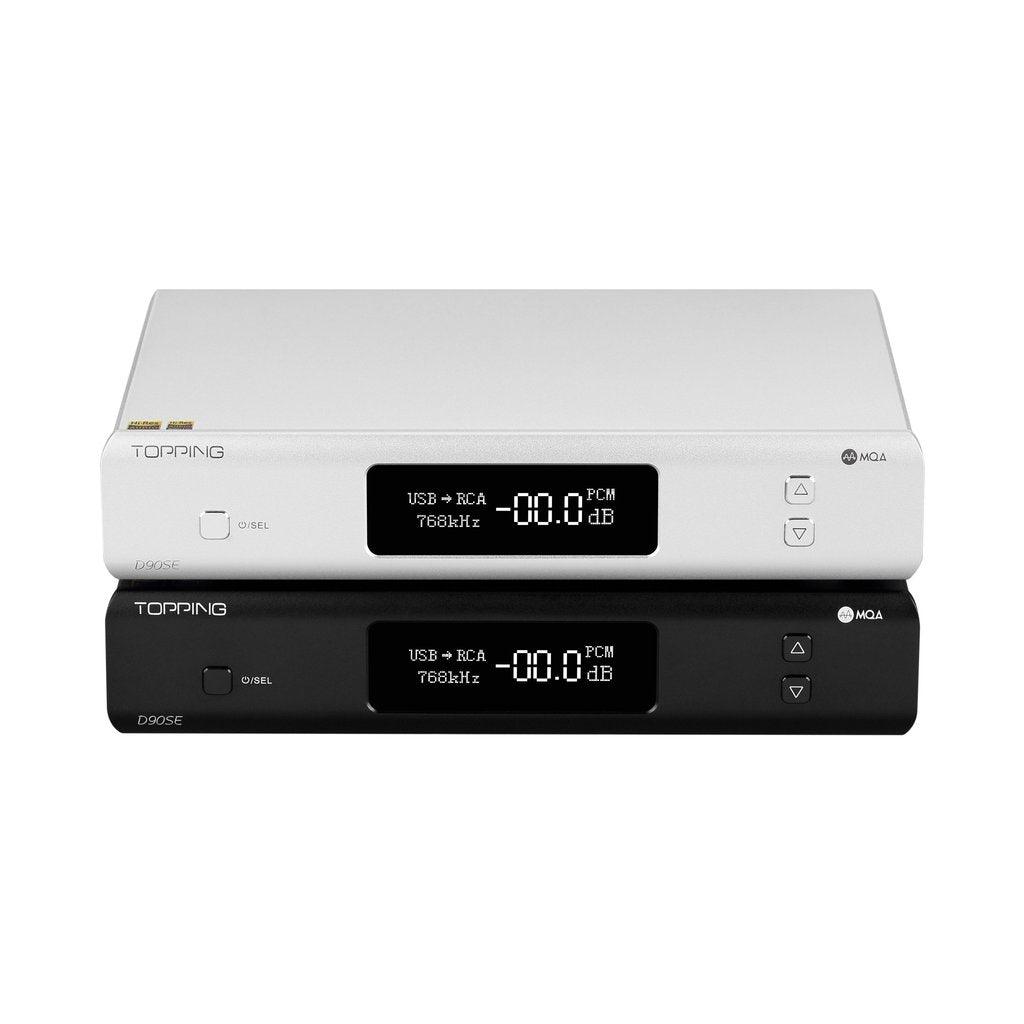

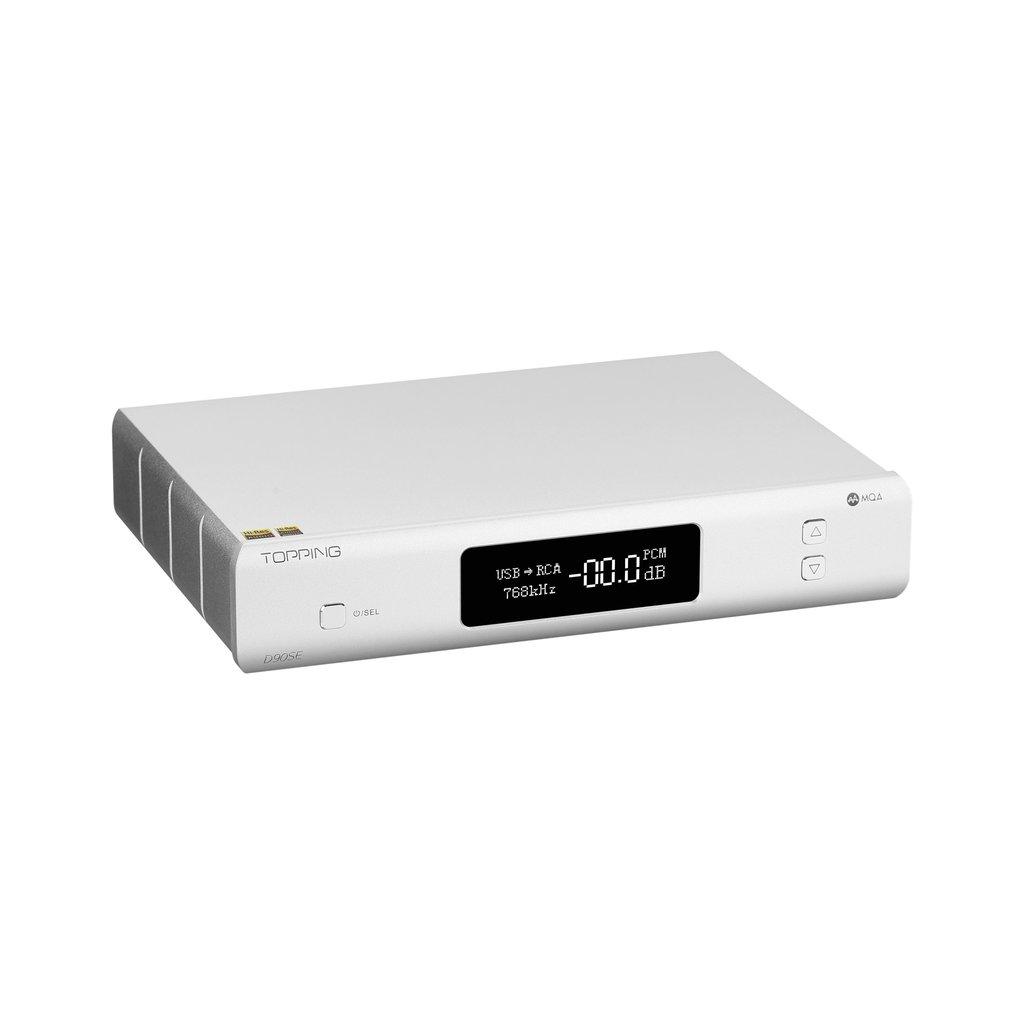

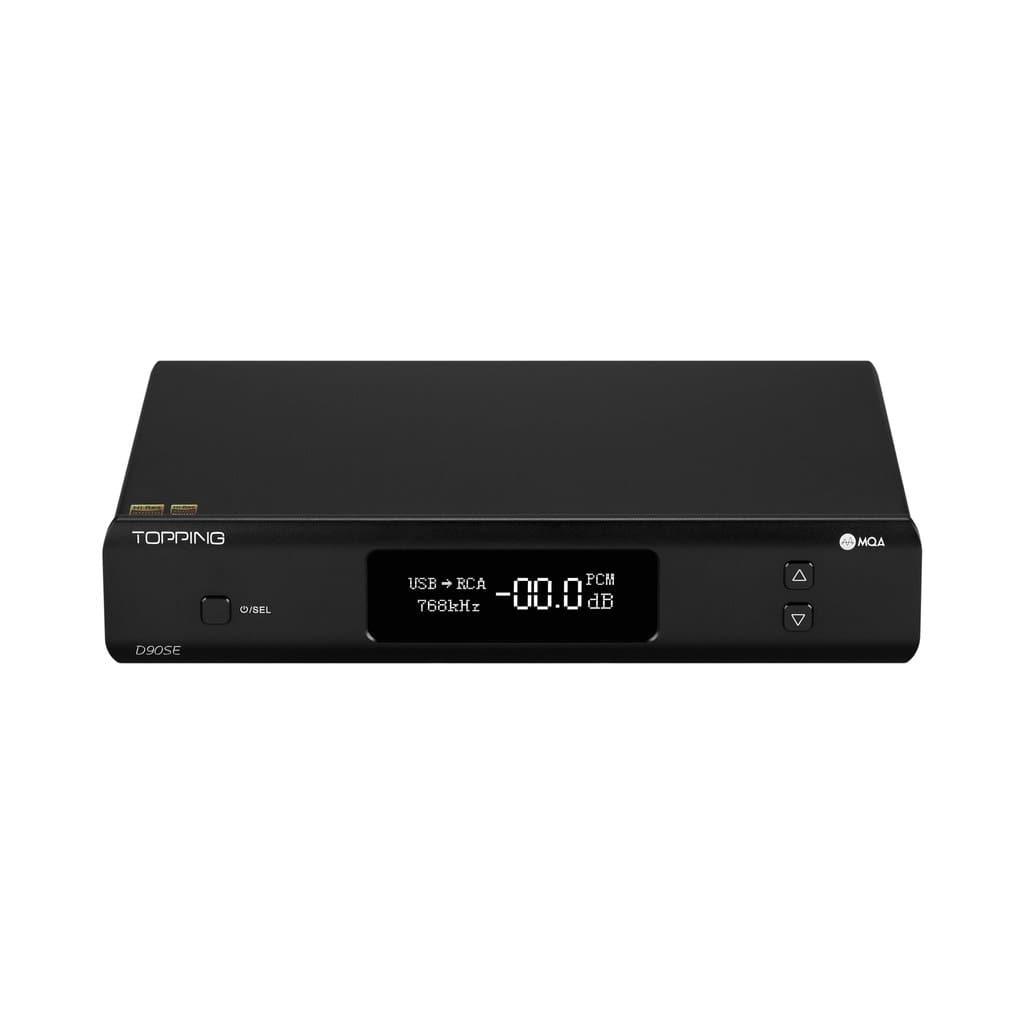

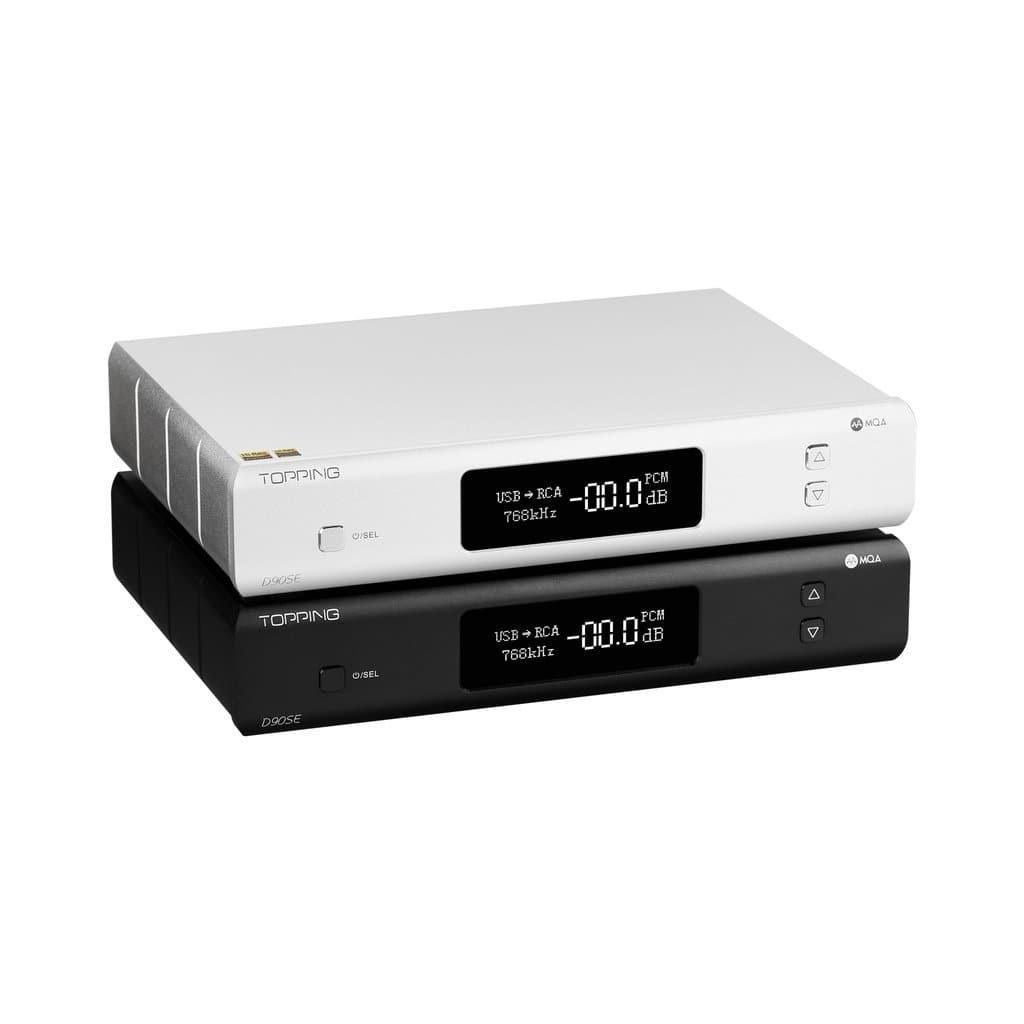

Topping D90SE Desktop Digital to Analog Convertor (DAC)

Topping D90SE Desktop Digital to Analog Convertor (DAC)

Regular price $899
Sale price $899 Regular price $899.00

Connectivity

Wired

Portability

Not Portable

365-day returns

Don’t love it? Return it any time in the first year of ownership

View full details

Topping

Topping D90SE Desktop Digital to Analog Convertor (DAC)

Regular price $899
Sale price $899 Regular price $899.00

Bluetooth 5.0 LDAC transmission

D9OSE has the certification of Hi-Res Audio Wireless and LDAC. It uses CSR8675 chipset to support LDAC/AAC/SBC/APTX/APTX LL/APTX HD protocol.To get even better sound quality from Bluetooth, we abandon the built-in DAC of CSR8675 and connect it’s digital signal to ES9O38PRO to decode.

Plunge into the ultimate hi-res experience

B Plunge into 32-bit depth and DSD1024 for an unforgettable hi-res experience. Your favorite albums will reveal new details with the ESS SABRE ES9038PRO DAC chip. Each channel is arranged in parallel by 4 conventional balanced channels for maximum fidelity and accuracy.

Bit-perfect audio transfer

Get bit-perfect audio playback without distortion or jitter. The XMOS 16-core XU216 microcontroller converts the highest quality digital files to analog voltage without the timing deviations that cause distortion. Plus, Asynchronous USB audio transfer and CPLD ensure jitter lower than -160dB.

Multi-amp machine with fully-functional remote

Choose XLR only, RCA only, or XLR+RCA to run the signal to two different amps at once, such as a solid state and a tube amp. No more plugging and unplugging cables every time you want to switch from one amp to the other. Use the D90SE’s fully-functional remote to control the full range of settings and options from the comfort of your couch. Switch output modes, adjust the volume, change digital filters, and more.

Six inputs increase your options

Connect all of your devices to the D90SE via its six input interfaces: AES, Bluetooth, USB, Optical, Coax, and IIS. Stream Spotify or Apple Music from your phone using Bluetooth. Connect your computer or laptop via USB or IIS. Get more out of movie night by connecting your TV via IIS or optical.

Features

  • ESS ES9038 PRO DAC chip, MQA decoding with USB, coaxial, optical, and AES inputs
  • Get bit-perfect audio playback without distortion or jitter. The XMOS 16-core XU216 microcontroller converts the highest quality digital files to analog voltage without the timing deviations that cause distortion. Plus, Asynchronous USB audio transfer and CPLD ensure jitter lower than -160dB.
  • Ditch the cables, not the quality. Get rich 24-bit Bluetooth 5.0 transmission with support of major lossless codecs: AAC, SBC, APTX, APTX LL, APTX HD, and LDAC.
  • Use the D90SE in “DAC + Preamplifier” mode and connect a power amplifier or monitor speakers. Control the output volume on the front panel or with the remote control.



Specifications:

USB IN

  • PCM: 16-32bit / 44.1 - 768kHz
  • DSD (Native): DSD64 - DSD512
  • DSD (DoP): DSD64 - DSD256
  • MQA: Renderer, MQA, MQA Studio

IIS IN

  • PCM: 16 - 32bit / 44.1kHz - 768kHz
  • DSD (Native): DSD64 - DSD1024
  • DSD (DoP): DSD64 - DSD256
  • MQA: Not supported
  • Coax/ Opt/ AES IN
  • PCM: 16 - 24bit / 44.1kHz - 192kHz
  • DSD (Native): Not supported
  • DSD (DoP): DSD64
  • MQA: Renderer, MQA, MQA Studio
  • Bluetooth: AAC / SBC / APTX / APTX LL / APTX HD / LDAC
  • Line out RCA decoding parameters (USB IN @96kHz)
  • THD+N@A-wt: <0.00007% @1kHz
  • THD@No-wt 90kBw: <0.0008% @20-20kHz
  • SNR@A-wt: 127dB @1kHz
  • Dynamic range @A-wt: 127dB @1kHz

Frequency response

  • 20Hz - 20kHz (±0.1dB)
  • 20Hz - 40kHz (±0.3dB)

Output level

  • 2.1Vrms @0dBFS (4V Mode)
  • 2.6Vrms @0dBFS (5V Mode)
  • Noise @A-wt: <1.3uVrms
  • Crosstalk: -124dB @1kHz
  • Channel balance: 0.3dB
  • Output impedance: 100Ω
  • Line out XLR decoding parameters (USB IN @96kHz)
  • THD+N@A-wt: <0.00005% @1kHz
  • THD@No-wt 90kBw: <0.0003% @20-20kHz
  • SNR@A-wt: 134dB @1kHz
  • Dynamic range @A-wt: 134dB @1kHz

Frequency response

  • 20Hz - 20kHz (±0.1dB)
  • 20Hz - 40kHz (±0.3dB)
  • Noise @A-wt: <1.1uVrms
  • Crosstalk: -139dB @1kHz
  • Channel balance: 0.3dB
  • Output impedance: 100Ω
