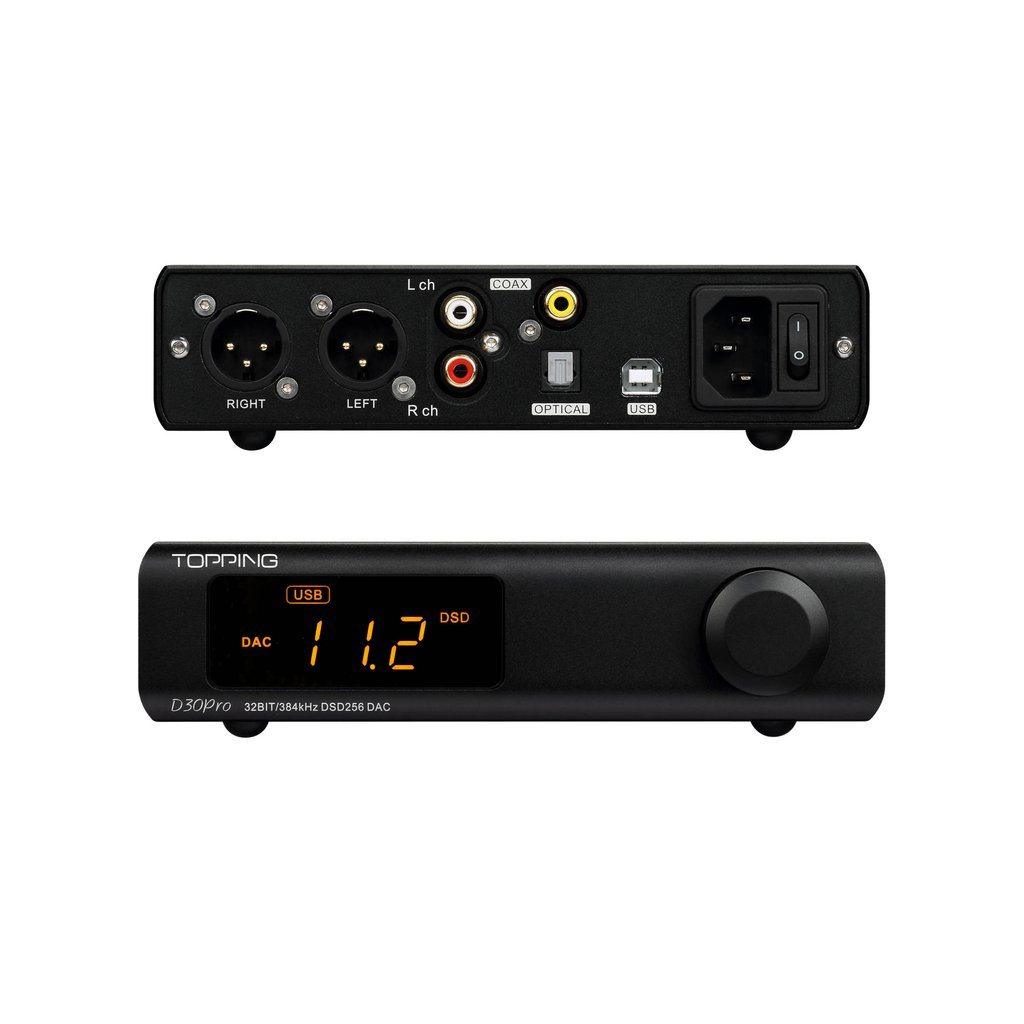

Topping D30 Pro Desktop DAC

Topping D30 Pro Desktop DAC

Regular price $399
Sale price $399 Regular price $399.00

Connectivity

Wired

Portability

Not Portable

365-day returns

Don’t love it? Return it any time in the first year of ownership

View full details

Topping

Topping D30 Pro Desktop DAC

Regular price $399
Sale price $399 Regular price $399.00

Powerful 4 x CS43198 DAC Chips

What changes can a quad DAC bring? The answer is in TOPPING newly launched Topping D30 PRO Desktop Digital to Analog Convertor (DAC). With the use of 4*CS43198 chips, it provides a total of 8 full balanced channels, each of which is arranged in parallel by 4 conventional balanced channels. The increase in output capability will bring changes in the sound and the spec will be improved

Optical/Coaxial/USB Inputs, RCA/XLR Output

The Topping D30 Pro Desktop DAC supports USB/ Coaxial/ Optical inputs, USB maximum support PCM 32bit/ 384kHz, DSD256 (Native), DSD128 (Dop); D30pro has full balanced XLR output and single ended RCA output. You can choose XLR only,"RCA only" or XLR+RCA output to meet different usage in the multiple systems.

Preamplifier Function

The Topping D30 Pro Desktop Digital to Analog Convertor (DAC) has preamplifier function so you can control the output volume on the front panel or use remote control. It’s noise is lower than other similar products making it suitable for connecting to power amplifiers or monitor speakers while also help you leave the budget of a preamp.

What Effort We’ve Made

CPLD focusing on clock processing and digital signal optimization, restoring what t he digital signal should be. We use up to 8 independent LDOs to supply power to different loads, so there is no longer interference between different loads. Both RCA and XLR have reached the 120dB SINAD, so that RCA transmission can also have same excellent performance as XLR. .

Make it A Combo

The TOPPING A30 Pro Desktop Headphone Amp + TOPPING D30pro Desktop DAC combination have a specifically redesigned NFCA module and custom functions for better resolution and output for your HiFi system

Specifications

  • USB IN: PCM 44. 1 kHz-384kHz/16bit-32bit
  • DSD DSD64-DSD256 (Native)、DSD64-DSD128 (Dop)
  • COAX/OPT IN: PCM 44. 1 kHz-192kHz/16bit-24bit
  • DSD DSD64(Dop)

D30 pro Decoding parameters (USB In@96kHz)

LINE OUT RCA:

  • THD+N@A-wt: <0.0001%@1kHz
  • THD@No-wt 45kBw: <0.0004%@20-20kHz
  • SNR@A-wt: 127dB@1kHz
  • Dynamic range@A-wt: 127dB @1kHz
  • Frequency Response:20Hz-20kHz(+0.1dB)
  • 20Hz-40kHz(+0.3dB)
  • Output Voltage: 2Vrms@0dBFS
  • Noise @A-wt: < 0.9uVrms
  • Crosstalk: -116dB@1kHz
  • Output Impedance: 20Ω

LINE OUT XLR:

  • THD+N@A-wt: <0.00009% @1kHz
  • THD@No-wt 45kBw: <0.0004 % @20-20kHz
  • SNR@A-wt: 132dB@1kHz
  • Dynamic range@A-wt: 132dB@1kHz
  • Frequency Response:20Hz-20kHz(+0.1dB)
  • 20Hz-40kHz(+0.3dB)
  • Output Voltage: 4Vrms@0dBFS
  • Noise @A-wt: < 1.1uVrms
  • Crosstalk: -145dB@1kHz
  • Output Impedance: 40Ω

What's In the Box?

  • Topping D30 Pro Desktop DAC
  • Remote Control
  • USB Cable
  • AC Cable
  • User Manual
  • Warranty Card
